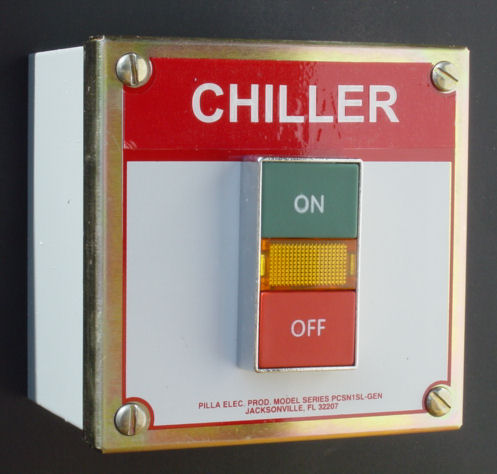

POWER CONTROL STATIONS SERIES MST3 BLANK FACE OR "SPECIFIC LEGEND" Control Station,NEMA 1-MOMENTARY, NON-INTERLOCKED, (See Note 1 Below for NEMA 4/12/4X Rated Version), Dual (Two) Square Green/Red Push Buttons, ILLUMINATED with Amber (Standard) Lens (Notes 2, 3 Below), Blank Inscriptions (Standard),Vertical Format, Specific Legends available, UL LISTED Back to List of series and information page See Series PIL accessories preceeding page.

MST3N1

Actual: Blow up |Normal |Reduce Blow up |Normal |Reduce Drawing:Coming soon Blow up |Normal |Reduce Blow up |Normal |Reduce

FEATURES

• Nonmetallic NEMA 4X enclosure with stainless steel machine screws (standard)

• Bold silk screen legends on white enamel aluminum face plate (standard)

• Single device control stations with two/three position Selector Switch: See series PCS2P and PCS3P

• Single device control stations with two/three position Keyed Selector: See series PCS2K and PCS3K

• Single device control station with choice Push Button, Mushroom or Toggle: See series SWLPB

• Single device indicator station with choice of Pilot/Flashing Pilot/Push to Test Pilot or Audible Alarm: See series SWLPL

• Two device contol stations with two Maintained/Interlocked Push Buttons: See series MNST and MNSTL

• Two device contol stations with choice of Push Button, Mushroom, Pilot/Flashing Pilot/Push to Test Pilot, Toggle Switch, Audible Alarm, Selector Switch and Keyed Selector as otional devices: See series MST1

• Dual device control stations: See series MST2 and MST3

• Two device control stations with two position Selectro Switch and choice of Push Button/Mushroom/Pilot/Flashing Pilot/Push to Test Pilot/Toggle Switch/Audible Alarm as second device: See series PCS2PX

• Two device control stations with three position Selectro Switch and choice of Push Button/Mushroom/Pilot/Flashing Pilot/Push to Test Pilot/Toggle Switch/Audible Alarm as second device: See series PCS3PX

• Two device control stations with two position Keyed Selector and choice of Push Button/Mushroom/Pilot/Flashing Pilot/Push to Test Pilot/Toggle Switch/Audible Alarm as second device: See series PCS2KX

• Two device control stations with three position Keyed Selector and choice of Push Button/Mushroom/Pilot/Flashing Pilot/Push to Test Pilot/Toggle Switch/Audible Alarm as second device: See series PCS3KX

• Standard depth 4X4X2.38 inch surface mount nonmetallic enclosure accepts up to three contact blocks on each device

• Extra depth 4X4X4.5 inch surface mount nonmetallic enclosure accepts up to nine contact blocks per device: Add model suffix XD

• Super depth 4X4X6.5 inch surface mount nonmetallic enclosure accepts up to fifteen contact blocks per device: Add model suffix SD

• All-metal models (surface or flush mount) use a 4X4X3 inch enclosure accepting up to six contact blocks on each device

• Economy NEMA 1 flush mount models available with backbox (see below) or for mounting on standard 2-gang wall box

• NEMA 1 all-metal models (flush or surface) feature 1/2-3/4" knockout top, bottom & back of use with 1/2" or 3/4" conduit

• NEMA 4/12 all-metal models feature 1/2-3/4" knockout on back of box for connection to 1/2" and 3/4" conduit

• NEMA 4X all-stainless steel models include 1/2" conduit provision on back of box

• ALL-METAL MODELS MEET NYC, CHICAGO AND OTHER SPECIFIC REQUIREMENTS: Add model suffix MT1, MT4 or MS as indicated

• Illuminated modelsinclude 24-120V AC/DC protected LED (standard) and can be wired to operate continuously or selectively.Optional incandescent or neon lamps available on some models: Add model suffix IL (Notes 1, 2)

• Flush mount models are all-metal as standard and use a 4X4X3 inch enclosure accepting up to sif contact blocks on each device

• Restricted operator/station access available: See Series PIL accessories PILCLHCOV1/PILCLHCOVRP/PILCLHCOVRO/PILCLHCOVK (Note 3)

• "Alarm Sounds When Cover is Raised" restricted operator/station access available: See Series PIL accessory PILCLHCOVA
  (Note 3, 4)

• "Alarm Sounds When Cover is Raised" restricted operator access available: See Series PIL accessory PILCLMA/DLMA
  (Note 3, 4)

• Restricted single operator access available: Add model suffix RP/CP/RR/CR (for use with round push button operators)

• Restricted operator/station access available: Add model sufix GM (for use with mushroom operators)

• Key Release maintained mushroom model restricts reset/release access only: Add model suffix KR

• Flush mount models sold less enclosure and mount on standard one/two gang wall box (not supplied)

• Restricted single operator access available: See Series PIL accessory PILCLO Clear Hinged Lockout lid-for use with round push button, selector switch and keyed selector device (without key inserted) (Note 3)

• Restricted single operator access available: See Series PIL accessory PILCLM Clear Hinged Lockout lid-for use with mushroom device and keyed selector device (with and without key inserted) (Note 3)

• Restricted single operator access available: See Series PIL accessory PILDLM Clear Hinged Lockout lid-for use with mushroom device only (Note 3)

• Contact blocks rated 10AMP continuous up to 600Volts (See Note below)

• NOTE: Contact Blocks supplied separately; specify accessories PILNOCB and/or PILNCCB. See Series PIL accessories page 37.For electrical ratings, see CONTACT BLOCK CHARACTERISTICS page 75. Operators are rated Nema 4/12 (outdoor/indoor use).

• NOTE 1: Suffix IL models are supplied with a 3" deep metal or 4" deep nonmeatallic backbox.

• NOTE 2: LED illumination only on mushroom devices and Flashing Pilot. Optional incandescent or neon lamp available on other devices as-noted. Optional lamps are 120V standard (specify other voltage)

• NOTE 3: If no locking/sealing capability is desired, specify " no Tab"following catalog number (except PILCLHCOVA).
  Lockable/sealable covers and devices for use in accordance with applicable codes and requirements.

• NOTE 4: Must be ordered with (any series) push button station/not available for field installation. Includes pull pin with brass chain and audible alarm with protected On/Off microswitch. Alarm sounds when cover is raised, unless microswitch is "Off" position (maintenance)
